美国Gilsonj吉尔森 12英寸（305mm）筛网

符合 ASTM E11 要求的证书

关键词:

筛网

产品分类:

物性测试仪器及设备

No votes yet

Tab group

参数

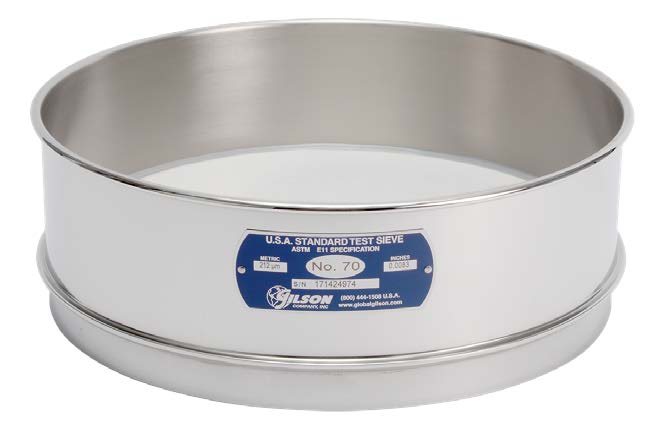

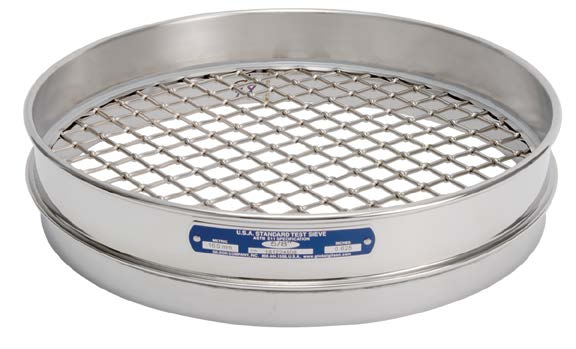

美国Gilsonj吉尔森 12英寸（305mm）筛网

12in Diameter ASTM E11 Test Sieves

Sieve Designation		Stainless Steel Cloth Stainless Steel Frame			Stainless Steel Cloth Brass Frame			Brass Cloth Brass Frame
Alt.	Std.	Full-Ht.	Inter.-Ht.	Half-Ht.	Full-Ht.	Inter.-Ht.	Half-Ht.	Full-Ht.	Inter.-Ht.	Half-Ht.
4in	100.0mm	V12SF 4"	V12SI 4"	—	V12CF 4"	V12CI 4"	—	—	—	—
3-1/2in	90.0mm	V12SF 3-1/2"	V12SI 3-1/2"	—	V12CF 3-1/2"	V12CI 3-1/2"	—	—	—	—
3in	75.0mm	V12SF 3"	V12SI 3"	—	V12CF 3"	V12CI 3"	—	—	—	—
2-1/2in	63.0mm	V12SF 2-1/2"	V12SI 2-1/2"	—	V12CF 2-1/2"	V12CI 2-1/2"	—	—	—	—
2.12in	53.0mm	V12SF 2.12"	V12SI 2.12"	—	V12CF 2.12"	V12CI 2.12"	—	—	—	—
2in	50.0mm	V12SF 2"	V12SI 2"	—	V12CF 2"	V12CI 2"	—	—	—	—
1-3/4in	45.0mm	V12SF 1-3/4"	V12SI 1-3/4"	—	V12CF 1-3/4"	V12CI 1-3/4"	—	—	—	—
1-1/2in	37.5mm	V12SF 1-1/2"	V12SI 1-1/2"	—	V12CF 1-1/2"	V12CI 1-1/2"	—	—	—	—
1-1/4in	31.5mm	V12SF 1-1/4"	V12SI 1-1/4"	—	V12CF 1-1/4"	V12CI 1-1/4"	—	—	—	—
1.06in	26.5mm	V12SF 1.06"	V12SI 1.06"	—	V12CF 1.06"	V12CI 1.06"	—	—	—	—
1in	25.0mm	V12SF 1"	V12SI 1"	V12SH 1"	V12CF 1"	V12CI 1"	V12CH 1"	—	—	—
7/8in	22.4mm	V12SF 7/8"	V12SI 7/8"	V12SH 7/8"	V12CF 7/8"	V12CI 7/8"	V12CH 7/8"	—	—	—
3/4in	19.0mm	V12SF 3/4"	V12SI 3/4"	V12SH 3/4"	V12CF 3/4"	V12CI 3/4"	V12CH 3/4"	—	—	—
5/8in	16.0mm	V12SF 5/8"	V12SI 5/8"	V12SH 5/8"	V12CF 5/8"	V12CI 5/8"	V12CH 5/8"	—	—	—
0.530in	13.2mm	V12SF .530"	V12SI .530"	V12SH .530"	V12CF .530"	V12CI .530"	V12CH .530"	—	—	—
1/2in	12.5mm	V12SF 1/2"	V12SI 1/2"	V12SH 1/2"	V12CF 1/2"	V12CI 1/2"	V12CH 1/2"	—	—	—
7/16in	11.2mm	V12SF 7/16"	V12SI 7/16"	V12SH 7/16"	V12CF 7/16"	V12CI 7/16"	V12CH 7/16"	—	—	—
3/8in	9.5mm	V12SF 3/8"	V12SI 3/8"	V12SH 3/8"	V12CF 3/8"	V12CI 3/8"	V12CH 3/8"	—	—	—
5/16in	8.0mm	V12SF 5/16"	V12SI 5/16"	V12SH 5/16"	V12CF 5/16"	V12CI 5/16"	V12CH 5/16"	—	—	—
0.265in	6.7mm	V12SF .265"	V12SI .265"	V12SH .265"	V12CF .265"	V12CI .265"	V12CH .265"	—	—	—
1/4in	6.3mm	V12SF 1/4"	V12SI 1/4"	V12SH 1/4"	V12CF 1/4"	V12CI 1/4"	V12CH 1/4"	—	—	—
No.3-1/2	5.6mm	V12SF #3-1/2	V12SI #3-1/2	V12SH #3-1/2	V12CF #3-1/2	V12CI #3-1/2	V12CH #3-1/2	—	—	—
No.4	4.75mm	V12SF #4	V12SI #4	V12SH #4	V12CF #4	V12CI #4	V12CH #4	—	—	—
No.5	4.0mm	V12SF #5	V12SI #5	V12SH #5	V12CF #5	V12CI #5	V12CH #5	—	—	—
No.6	3.35mm	V12SF #6	V12SI #6	V12SH #6	V12CF #6	V12CI #6	V12CH #6	—	—	—
1/8in¹	3.18mm	V12SF 1/8"	V12SI 1/8"	V12SH 1/8"	V12CF 1/8"	V12CI 1/8"	V12CH 1/8"	—	—	—
No.7	2.8mm	V12SF #7	V12SI #7	V12SH #7	V12CF #7	V12CI #7	V12CH #7	—	—	—
No.8	2.36mm	V12SF #8	V12SI #8	V12SH #8	V12CF #8	V12CI #8	V12CH #8	V12BF #8	V12BI #8	V12BH #8
No.10	2.0mm	V12SF #10	V12SI #10	V12SH #10	V12CF #10	V12CI #10	V12CH #10	V12BF #10	V12BI #10	V12BH #10
No.12	1.7mm	V12SF #12	V12SI #12	V12SH #12	V12CF #12	V12CI #12	V12CH #12	V12BF #12	V12BI #12	V12BH #12
No.14	1.4mm	V12SF #14	V12SI #14	V12SH #14	V12CF #14	V12CI #14	V12CH #14	V12BF #14	V12BI #14	V12BH #14
No.16	1.18mm	V12SF #16	V12SI #16	V12SH #16	V12CF #16	V12CI #16	V12CH #16	V12BF #16	V12BI #16	V12BH #16
No.18	1.0mm	V12SF #18	V12SI #18	V12SH #18	V12CF #18	V12CI #18	V12CH #18	V12BF #18	V12BI #18	V12BH #18
No.20	850μm	V12SF #20	V12SI #20	V12SH #20	V12CF #20	V12CI #20	V12CH #20	V12BF #20	V12BI #20	V12BH #20
No.25	710μm	V12SF #25	V12SI #25	V12SH #25	V12CF #25	V12CI #25	V12CH #25	V12BF #25	V12BI #25	V12BH #25
No.30	600μm	V12SF #30	V12SI #30	V12SH #30	V12CF #30	V12CI #30	V12CH #30	V12BF #30	V12BI #30	V12BH #30
No.35	500μm	V12SF #35	V12SI #35	V12SH #35	V12CF #35	V12CI #35	V12CH #35	V12BF #35	V12BI #35	V12BH #35
No.40	425μm	V12SF #40	V12SI #40	V12SH #40	V12CF #40	V12CI #40	V12CH #40	V12BF #40	V12BI #40	V12BH #40
No.45	355μm	V12SF #45	V12SI #45	V12SH #45	V12CF #45	V12CI #45	V12CH #45	V12BF #45	V12BI #45	V12BH #45
No.50	300μm	V12SF #50	V12SI #50	V12SH #50	V12CF #50	V12CI #50	V12CH #50	V12BF #50	V12BI #50	V12BH #50
No.60	250μm	V12SF #60	V12SI #60	V12SH #60	V12CF #60	V12CI #60	V12CH #60	V12BF #60	V12BI #60	V12BH #60
No.70	212μm	V12SF #70	V12SI #70	V12SH #70	V12CF #70	V12CI #70	V12CH #70	V12BF #70	V12BI #70	V12BH #70
No.80	180μm	V12SF #80	V12SI #80	V12SH #80	V12CF #80	V12CI #80	V12CH #80	V12BF #80	V12BI #80	V12BH #80
No.100	150μm	V12SF #100	V12SI #100	V12SH #100	V12CF #100	V12CI #100	V12CH #100	V12BF #100	V12BI #100	V12BH #100
No.120	125μm	V12SF #120	V12SI #120	V12SH #120	V12CF #120	V12CI #120	V12CH #120	V12BF #120	V12BI #120	V12BH #120
No.140	106μm	V12SF #140	V12SI #140	V12SH #140	V12CF #140	V12CI #140	V12CH #140	V12BF #140	V12BI #140	V12BH #140
No.170	90μm	V12SF #170	V12SI #170	V12SH #170	V12CF #170	V12CI #170	V12CH #170	V12BF #170	V12BI #170	V12BH #170
No.200	75μm	V12SF #200	V12SI #200	V12SH #200	V12CF #200	V12CI #200	V12CH #200	V12BF #200	V12BI #200	V12BH #200
No.230	63μm	V12SF #230	V12SI #230	V12SH #230	V12CF #230	V12CI #230	V12CH #230	V12BF #230	V12BI #230	V12BH #230
No.270	53μm	V12SF #270	V12SI #270	V12SH #270	V12CF #270	V12CI #270	V12CH #270	V12BF #270	V12BI #270	V12BH #270
No.325	45μm	V12SF #325	V12SI #325	V12SH #325	V12CF #325	V12CI #325	V12CH #325	V12BF #325	V12BI #325	V12BH #325
No.400	38μm	V12SF #400	V12SI #400	V12SH #400	V12CF #400	V12CI #400	V12CH #400	—	—	—
No.450	32μm	V12SF #450	V12SI #450	V12SH #450	V12CF #450	V12CI #450	V12CH #450	—	—	—
No.500	25μm	V12SF #500	V12SI #500	V12SH #500	V12CF #500	V12CI #500	V12CH #500	—	—	—
No.635	20μm	V12SF #635	V12SI #635	V12SH #635	V12CF #635	V12CI #635	V12CH #635	—	—	—
Regular Pan Extended Rim Pan		V12SFXPN V12SFXPE	— V12SIXPE	V12SHXPN V12SHXPE	V12BFXPN V12BFXPE	V12BIXPN V12BIXPE	V12BHXPN V12BHXPE	V12BFXPN V12BFXPE	V12BIXPN V12BIXPE	V12BHXPN V12BHXPE
Regular Cover Cover with Ring		V12SFXCV V12SFXCR			V12BFXCV V12BFXCR
